2021 TXR-Sedecal X-Ray Room

Our client is an imaging dealer wanting to sell this room.

Finding good rooms in California or the southwest US are hard to find.

Here are the X-ray specifications:

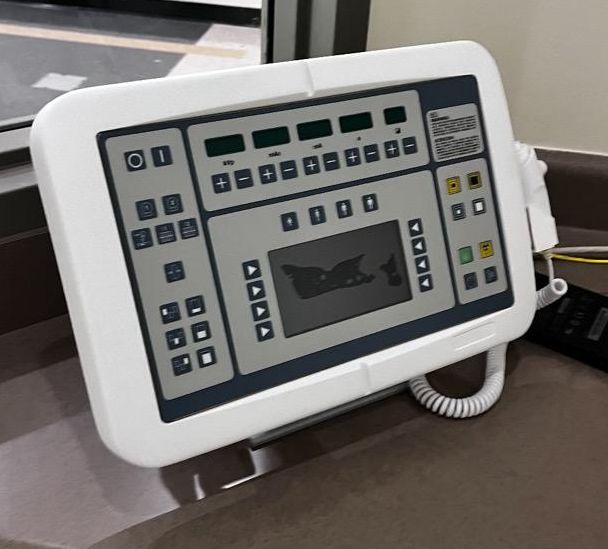

High Frequency Generator Part# SHF 310AP

• 32kW, High Frequency Generator
• Digital displays
• APR, Anatomical Programming
• Table mount
• Exposure hand switch
• Single Phase 208/240VAC
• 50 ft. console cables

X-Ray Tube

• 140,000 Heat Unit X-Ray

Tube Stands Part #13-CT/S114

• Wall Non-Rotate Tube stand with Transverse Travel
• +/-5" Transverse travel
• Vertical travel of 13.25" to 73.5"
• Magnetic locks for longitudinal, transverse, vertical & tube rotation
• 75.2" Longitudinal Travel with 8' floor track

Wall Stand Part #13-BF7/S109

• Floor to Wall Mount, Counterbalanced Column
• Vertical Travel: 9-3/4” to 72-3/4”
• Electric locks

Medical Tables part #MULTI-FWFTT

Four Way Float Top Table, Fixed Height, Multirad

• 86.6” x 32.4” float top table (2200mm x 825mm)
• Table top supports patients up to 661 lbs (300 kgs)
• Longitudinal table top travel 35" (+/-17.5") (900mm)
• Transverse table top travel 9" (+/-4.5") (230mm)
• Table top to Film Distance: 4" (102mm)
• Bucky travel: 20.3" (581mm)
• Table top to floor distance 30.3" (769mm)
• Electromagnetic brakes
• Heavy duty grid cabinet Heavy duty manual cassette tray
• 103 line, 10:1 ratio, 34-44" focal range grid

H.V. Cables part #10539-20-Pair, 20’ Cables

Collimator Part # CML-125-0001-C

• Available: Now
• Location - California, USA

Shipping is the responsibility of the buyer.
